Bending Machinery

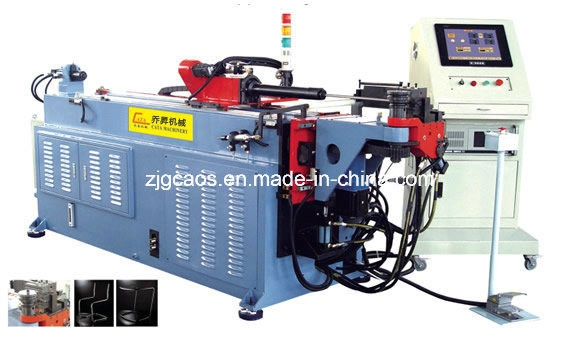

Name: Bending Machinery
Brand: CAOS
Price: 1 USD

Model NO. : SB50CNC

Max Bending Angle : 185

Bend Pipe Fittings Can Be Set : 16

The Data Input Mode : Y.B.C

Turing Servo Motor : 400W

Feeding Servo Moter : 1.5kw

Machine Size : 3500*1550*1050

Trademark : CAOS

Specification : SB50cNC

Origin : China

Supply Ability : 100

Transport Package : Wood

Payment Terms : 30% tt in advance 70% blance shipped out

Certification : ISO 9001:2008, CE

Suitable for : Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Model : Sb50CNC

Max Bending Radiu : 250mm

Min Bending Radiu : 25mm

Max Wear Core : 2400mm

MOQ : 1

Packaging Details : wood case

Delivery Time : 30days

Place of Origin : china

Brand Name : CAOS

Price : Negotiation

Contact Now

Product Description

Customer Question & Answer

Ask something for more details

(0)

Automatic recognition of power in machine and work piece, the processing is both quick and good
Slow returning core, boosted by barrow, imporving the apprearance of the angle.
The whole operation is in the computer, simple, quick and correct
Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
Rebound test: comparison test on the features of lots of pipe materials
Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
Automatic drawing of the graphics of dies-clear help to develop new products
Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
passwords, keys, working hours/ recordings of quantities, are applied to management of production.

Specification/Model		1. SB50CNC	Remark
Max bending capability		Φ50mm×3mm	1. The Minimum bending diameter of CNC bending machine based on the pipe diameter 2.The Max bending diameter of CNC bending machine can accordingto the customers requirement 3.The Max length of mandrel of CNC bending machine can according to customers requirement
Max bending radius		R250mm
Min bending radius		R20mm
Max bending angle		190°
Max feeding length		2600mm
feeding method		direct feeding clamping feeding
Working speed	Bending speed	Max 85°/s
	Rotary speed	Max 200°/s
	Feeding speed	Max 1000mm/s
Working accuracy	Bending accuracy	±0.1°
	Rotary accuracy	±0.1°
	Feeding accuracy	±0.1mm
Information inputting method		1. axisX . Y. Z 2.working valueY. B. C
Bending method		1.Servo bending : 1kw(more than 3 axis 2. Hydraulic bending
Power of rotary servo motor		750w
Power of feeding servo motor		1kw
Max bending groups		1. 12 2. 33
Max storing components		1. 330 2. 125
Motor power		7.5kw
Oil pressure		12 Mpa
Size		4900 x 1300 x 1300mm
Weight		2500kg
